Secondary Injectors

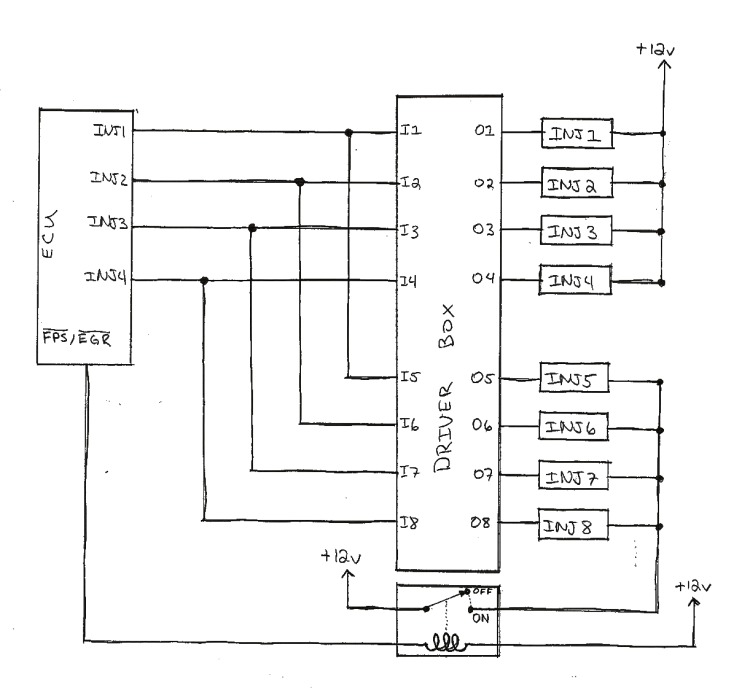

The following diagram provides a high-level view of how to wire in a second bank of injectors for use with ECMLink's secondary fuel control feature. This diagram illustrates 4 primary injectors and 4 secondary injectors. But, really, there's no reason you couldn't run 4 and 6 or whatever else. You just have to calculate the primary and secondary global fuel adjustments accordingly.
