GM MAF Cable - IAT/Baro inputs

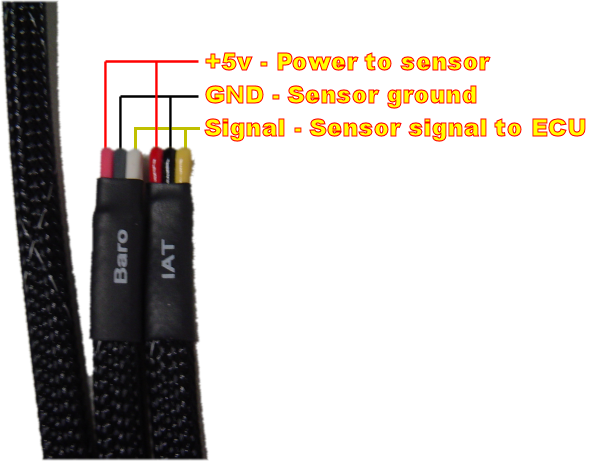

Our GM MAF cable provides breakout points for the Baro and IAT inputs to the ECU. The image below illustrates the layout.

NOTES: The signal wire for the Baro input (white wire) is a buffered input. For more information on what a buffered input means, refer to this page.
