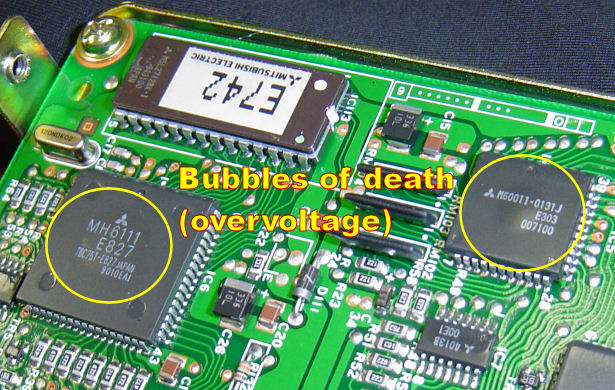

When caps leak bad enough, particularly on a 1G, the leakage tends to take out the voltage regulation circuit. When this happens, a number of critical components are subjected to much higher voltages than they were designed to tolerate. The picture below shows what this looks like.
