ECU-based Boost Control Overview

ECMLink's boost control mechanism is modeled after the factory implementation provided on 1995+ DSMs and Lancer EVOs. The most notable difference being that ECMLink's implementation provides gear-based control rather than a single curve that applies all the time.

The basic operation goes like this:

  1. Look up a base duty cycle from the Base Duty Cycle table based on gear and engine speed (RPM)
  2. Adjust this value by some amount based on how far away current boost is from desired boost

This sounds pretty simple and it really is, but once you start picking apart the phrases, you'll see it's a bit more involved than it might seem at first.

A sample screen shot is provided below for reference in the following sections.

Base Duty Cycle

The Base Duty Cycle table defines the starting point for the boost control solenoid. At any given RPM and in any particular gear, the ECU references this table to get a “base” value it'll use for the boost solenoid output.

If error correction has been disabled, then this value is the final value the ECU is going to use and your turbo will build whatever boost it just happens to build for the given wastegate duty cycle. You can use this mode of operation during setup and dialin to find where you setup naturally needs to be to build the boost you're looking for.

If error correction has been enabled, then the ECU references the Boost Target table to determine (for the same RPM and gear) what boost it should be trying to achieve at that moment. It then adjusts the base duty cycle accordingly (up or down). It tracks this adjustment with a “trim” value, similar to the short term fuel trim. The final duty cycle used by the ECU is basically:

Final DC % = (base DC %) + WGSTrim

The WGSTrim value is a loggable variable.

Boost Target

The Boost Target table defines the manifold pressure the user is expecting to achieve at a given RPM/gear combination. The ECU uses this value when error correction is enabled to adjust the base duty cycle value up or down as necessary in an attempt to get measured boost to match the target value.

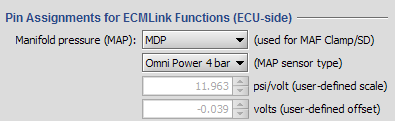

Measured boost is determined from the configured MAP sensor input on the ECU Inputs tab. You MUST configure this input first before the error correction process will work. You do this on the ECU Inputs tab using the fields shown below.

The ECU will compare current boost reported on the specified pin using the specified MAP sensor scaling against the target boost pulled from the Boost Target table to determine a boost “error”. How far off the current boost is from the target boost will determine how much error correction is applied to the current duty cycle (which may have been corrected already by some amount from a previous pass through this correction process).

WGSErrorCorr - Direct Access table

The table used to define how much error correction to apply is found in the Direct Access tab. It's listed there as WGSErrorCorr. It defines a correction amount (expressed as duty cycle percentage) to apply to the current duty cycle based on a boost pressure difference. A bigger difference (larger error) typically results in a more aggressive (larger) adjustment to the base duty cycle. But too much adjustment can result in oscillation.

If you get oscillation or you want faster response, you can decrease or increase (respectively) the corresponding entries in the WGSErrorCorr curve.

Altitude correction

The pressure sensors used by ECMLink are all absolute pressure sensors because absolute pressure is far more useful to the ECU than “boost”. But the user is more familiar with “boost”, so ECMLink provides an altitude correction factor to roughly translate absolute pressure to boost.

Options

Use 1st gear only

Check this box to disable the 2nd and 3rd gear rows of both the Boost Target and Base Duty Cycle tables.  We would only recommend using this option if you have error correction disabled.  The reason being that the Boost Target table really does change substantially based on gearing and road inclination.  Higher gears and steeper hills build boost at lower engine speeds.  This combined with the ECU's error correction logic can result in significant overshooot when you have only a single row controlling the boost target.

Still, some folks may want to simplify their tuning efforts and focus on a single row at all times. That's fine too, just keep in mind the expected results.

Use LatestSpeed for gear selection

When this box is checked, the ECU will use vehicle speed instead of gear ratio to select the gear rows of the Boost Target and Base Duty Cycle tables.  This is primarily provided for automatic transmissions where gear ratio isn't a reliable indication of gear due to the effect of the torque converter.

WGSGear - Direct Access Table

When this box is checked, you'll want to change the WGSGear table in Direct Access on the WGSMisc tab. The default values are based on an internal (raw) ECU value named WGSGearRatio. If you want to base gear selection on speed instead, then you'll need to change this table to reflect values from the internal ECU variable named LatestSpeed. The following screen shot shows the WGSGear tab in direct access.

The values shown above are the default gear ratio values provided in ECMLink. These values would select Gear 1 when WGSGearRatio is below 158. Then it would select Gear 2 when WGSGearRtio is between 158 and 248. Then it would select Gear 3 anytime WGSGearRatio is above 248.

The ECU provides some internal hysteresis to limit sudden switching between gears.

To change these values to reflect speed instead, calculate your speed points as:

WGSGear value = (speed in mph) / 1.2425

So, for example, if you want to select 2nd gear at 40mph, you will use 32 as the Gear 1 value. If you want to select 3rd gear at 80, then you'll use 64 as the Gear 2 value.

You can also display the raw ECU value called LatestSpeed on your graph using the Raw value → button in the Display Values dialog. That's the value the ECU will compare against when doing gear selection based on speed. You can use those values directly in the WGSGear table.
