Spaghetti Wires

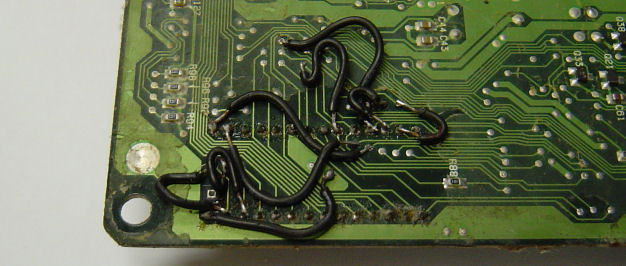

This ECU didn't look all that bad on the top side. There was, however, some evidence of prior rewiring on the top side that had been (sloppily) removed, causing shorts. So we decided before we made our repair estimate, we should check the bottom side. This is what we found.

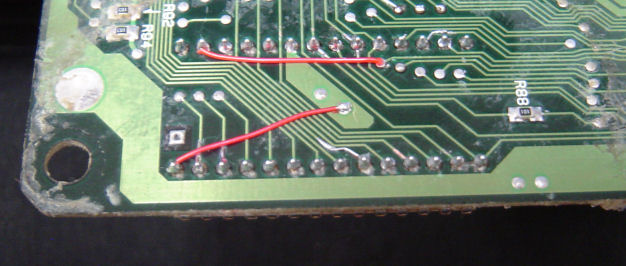

That was the “before” shot. Here's the after.
